The Easy Gripper product range is designed to help tyre professionals in a multitude of conditions and situations. Implementing the Easy Gripper makes tyre handling faster and safer, while preventing damage to tyres, rims, and equipment.

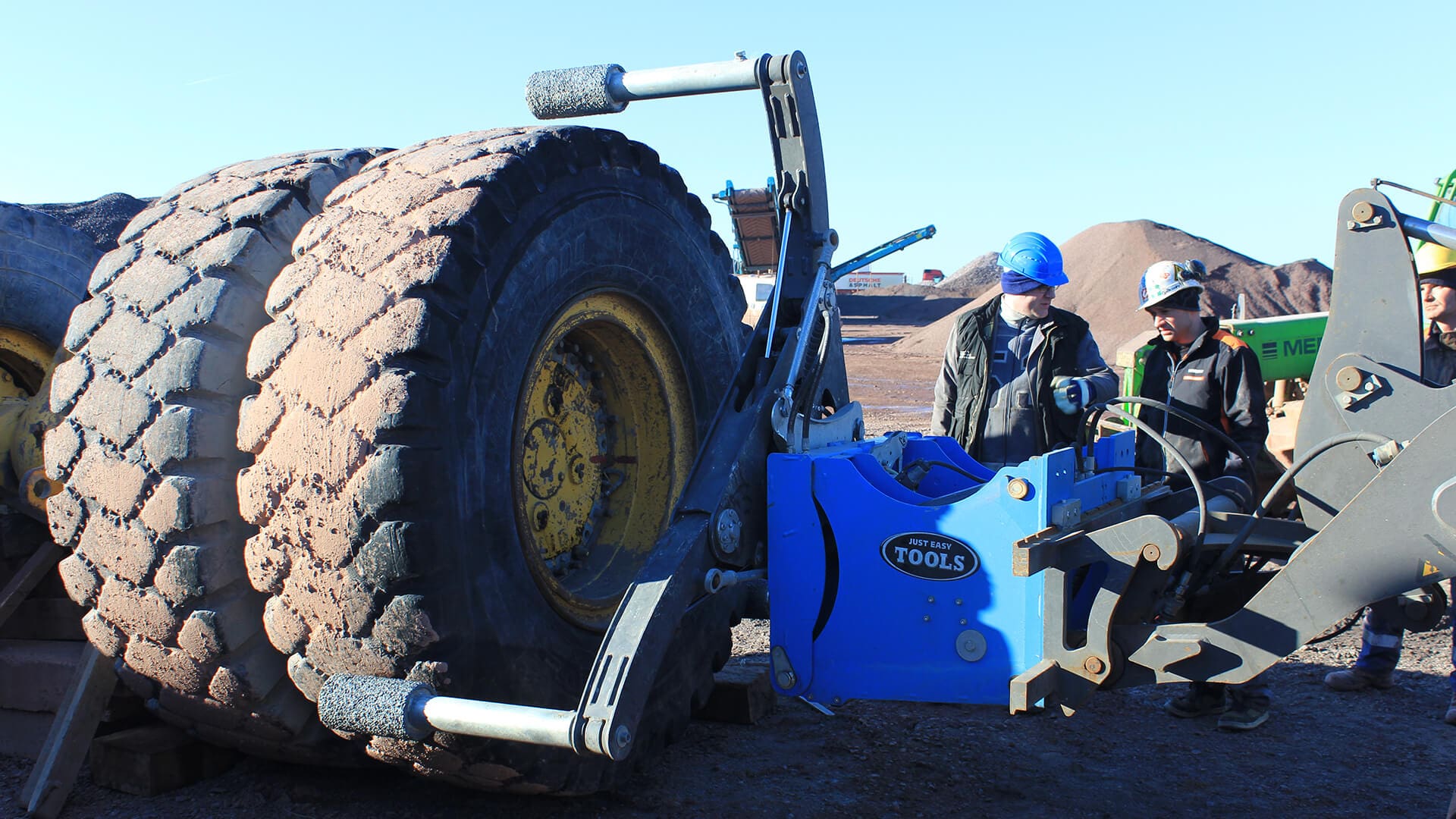

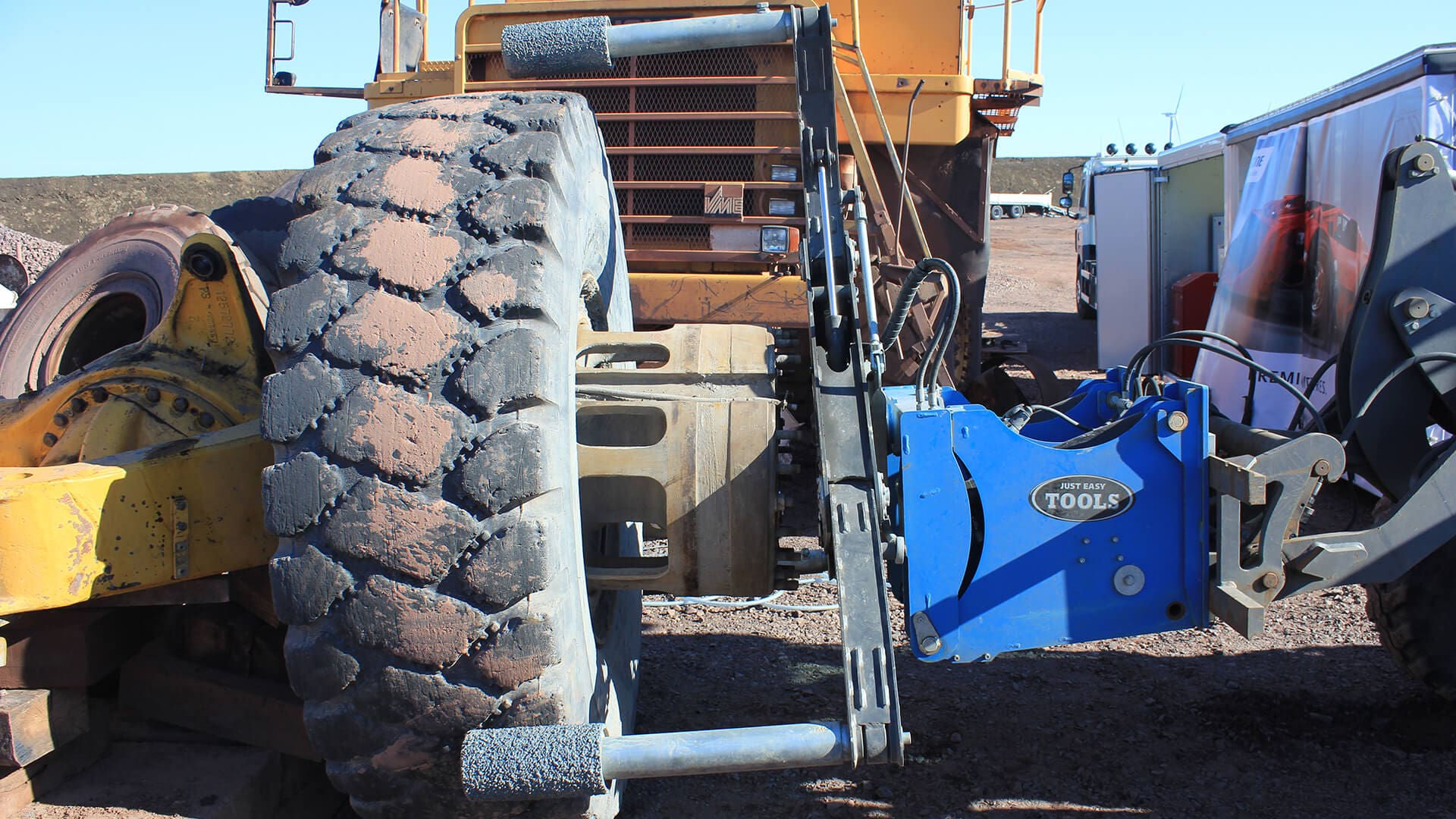

With a gripping range of Ø850 – 2.400 mm (34 – 94”) and a lifting capacity of 2 ton (4.400 lbs) at a CoG of 550 mm (22”), the Easy Gripper 2400-2T can handle tyres up to 37.25R35. When handling full wheel assemblies as inside duals, the Gripper handles up to 24.00R35 tyres.

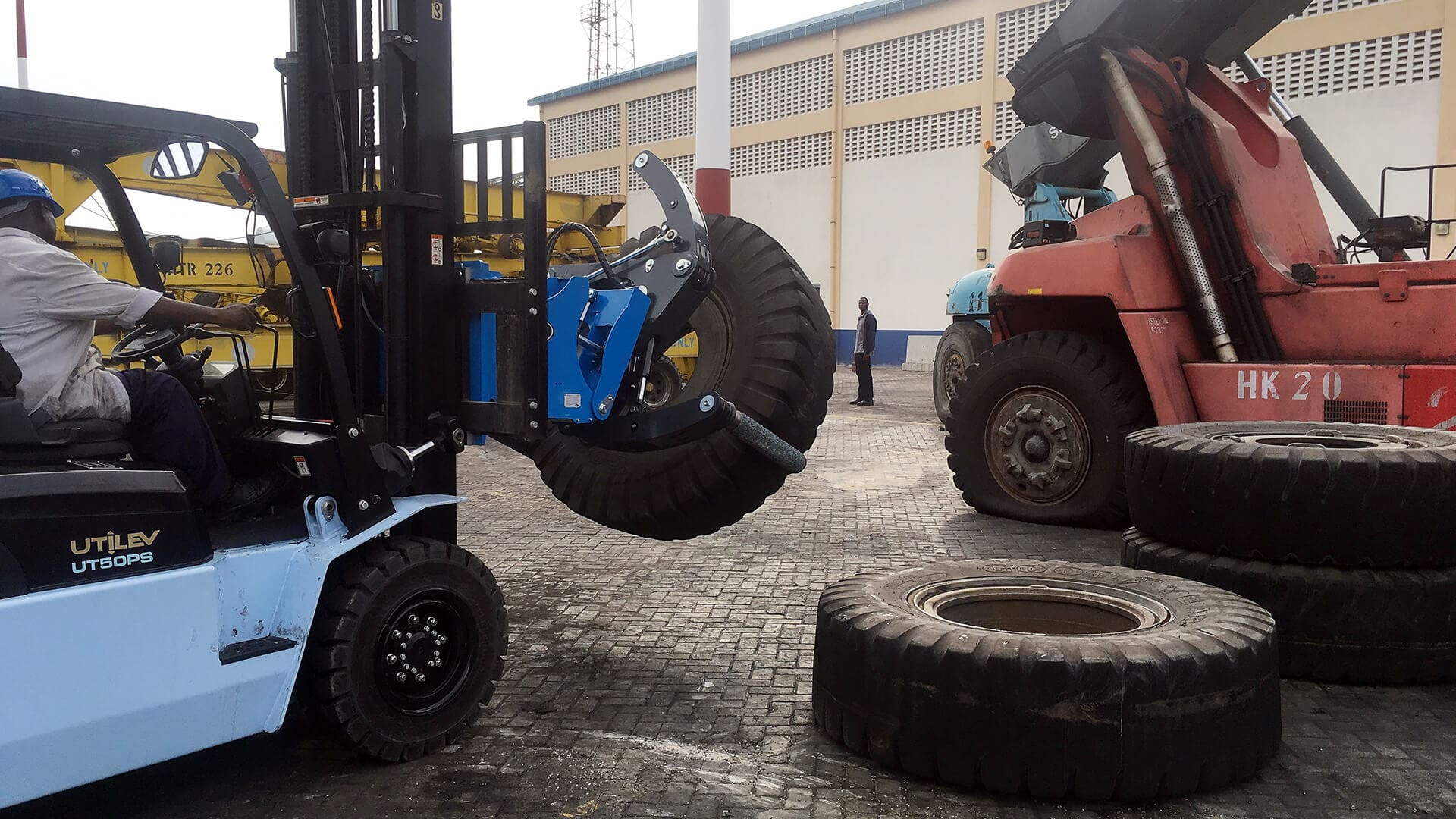

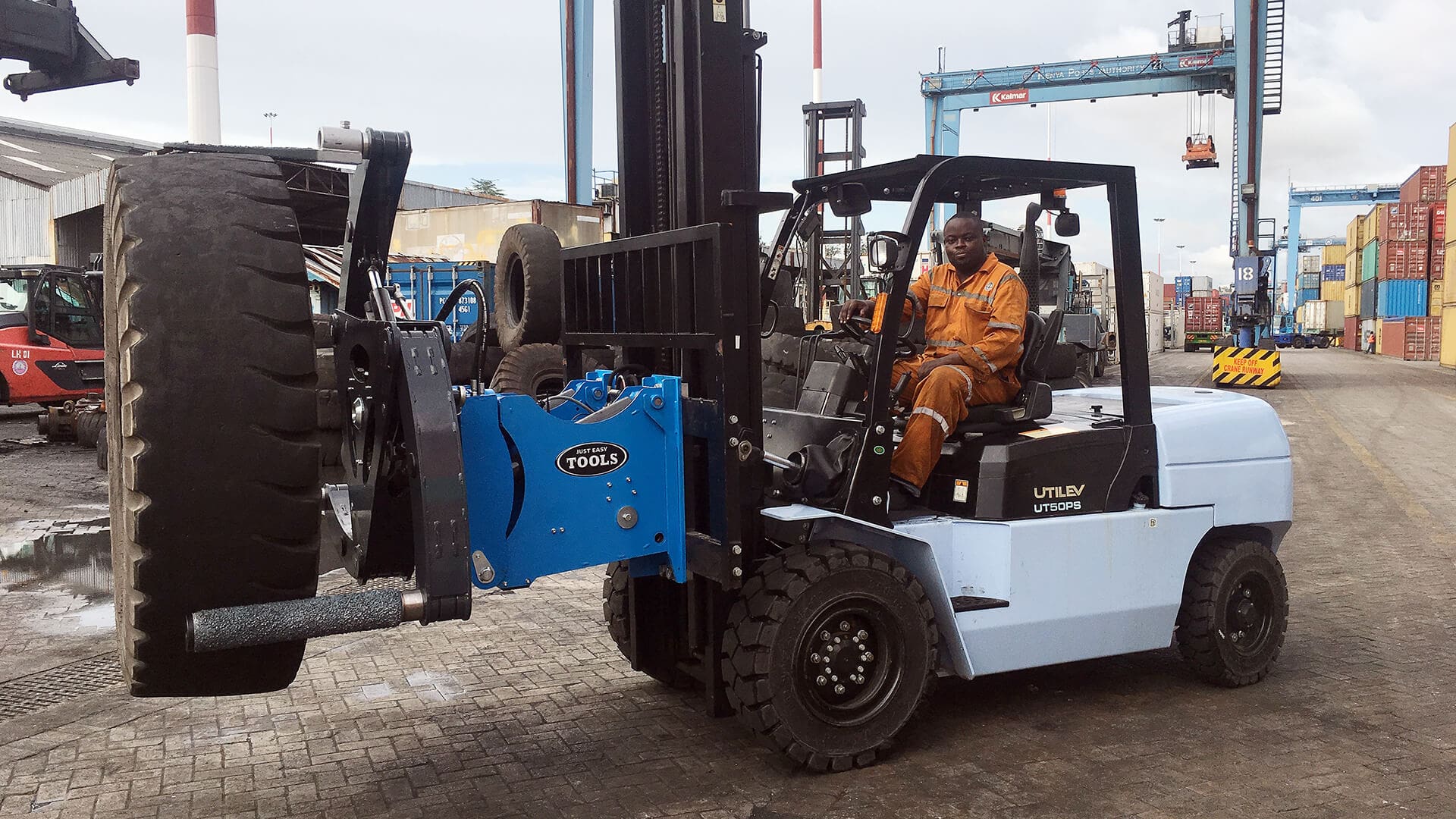

The Easy Gripper 2400-2T with the 90° tilt module, is ideal for use on forklifts.

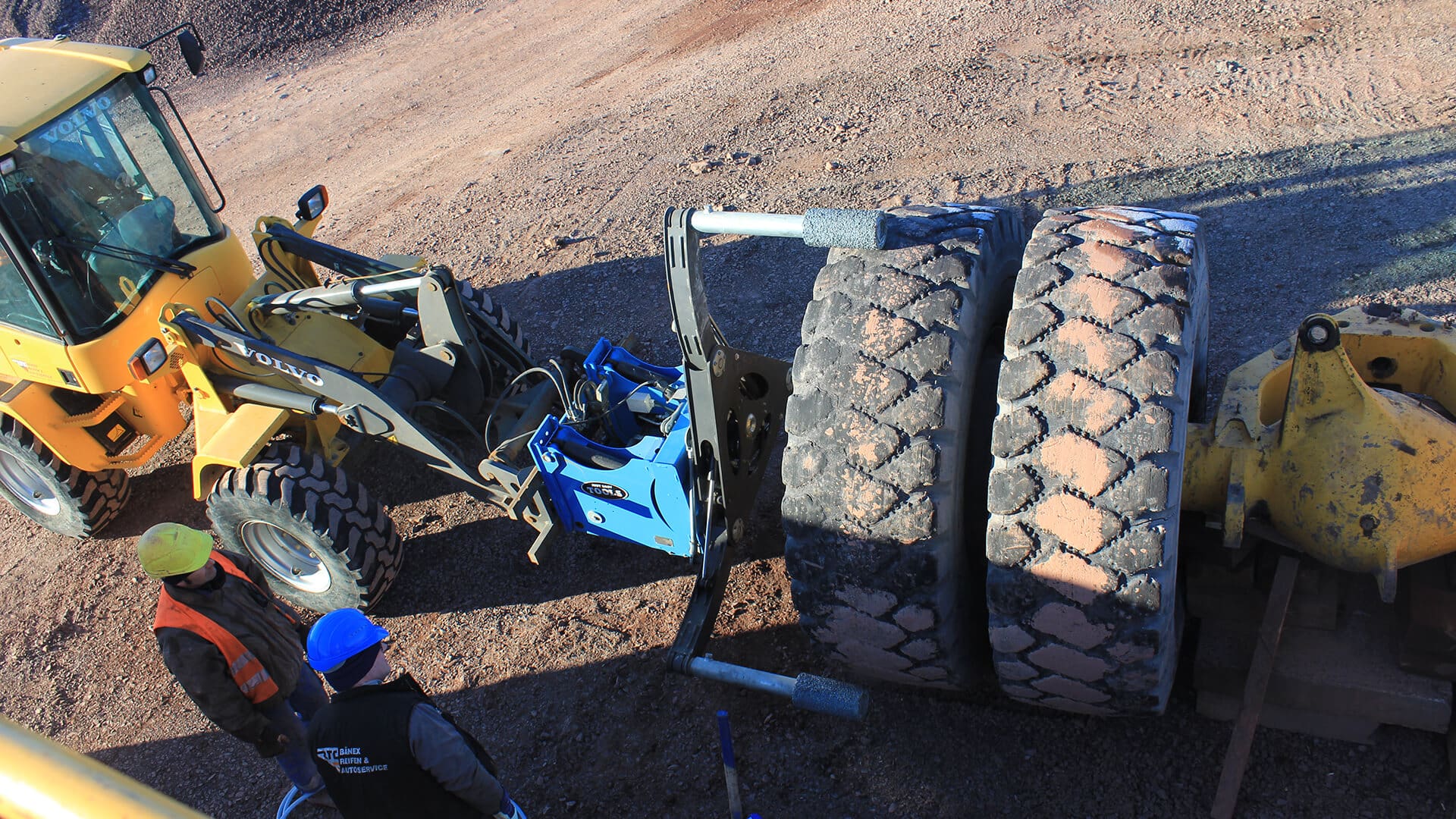

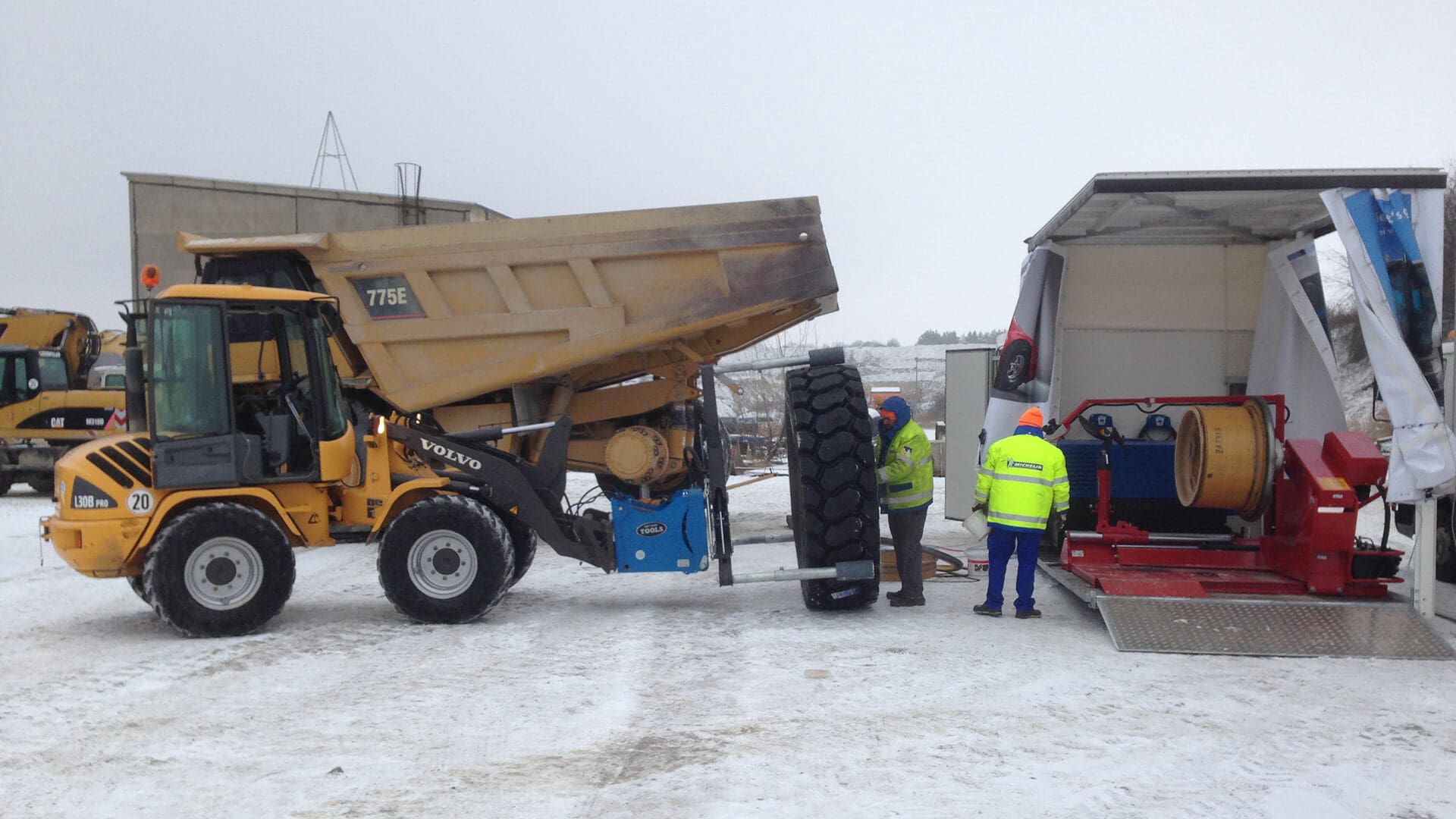

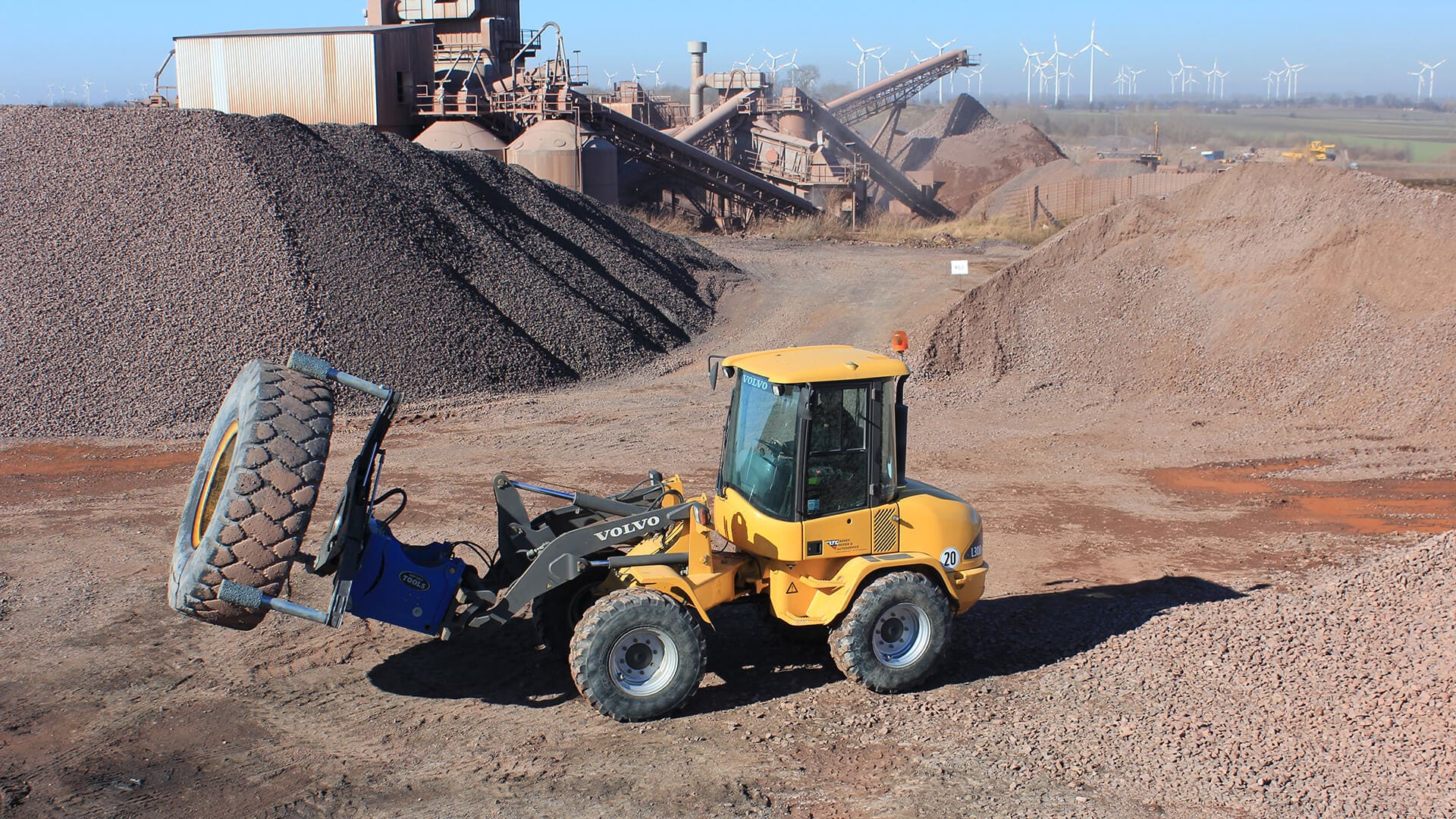

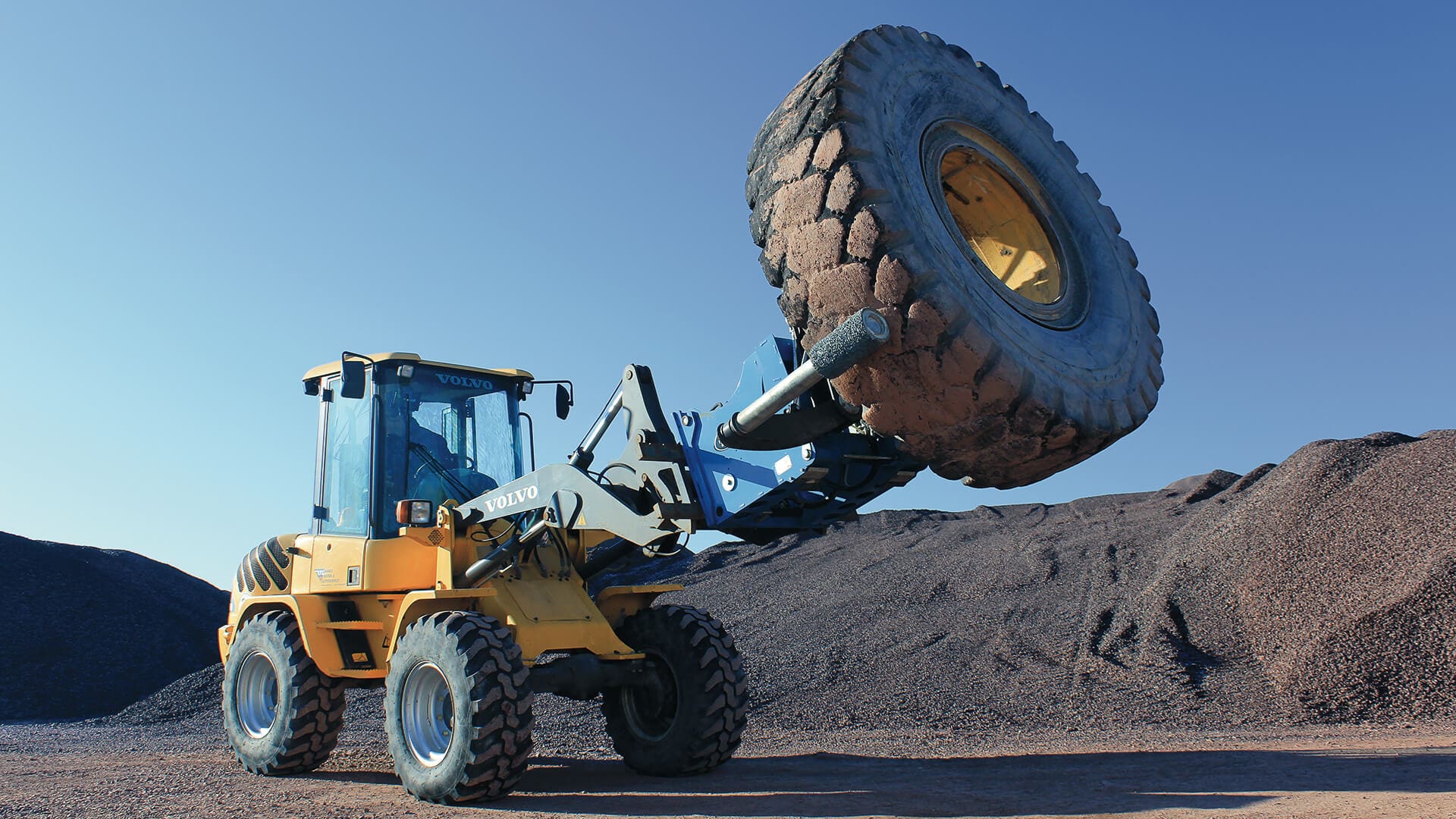

The Easy Gripper 2400-2T Compact without the tilt module is a good choice on front loaders and telehandlers, if the carrier can provide sufficient tilt.
By use of our Crane Module the Easy Gripper 2400-2T Compact also fit with almost any truck crane system.

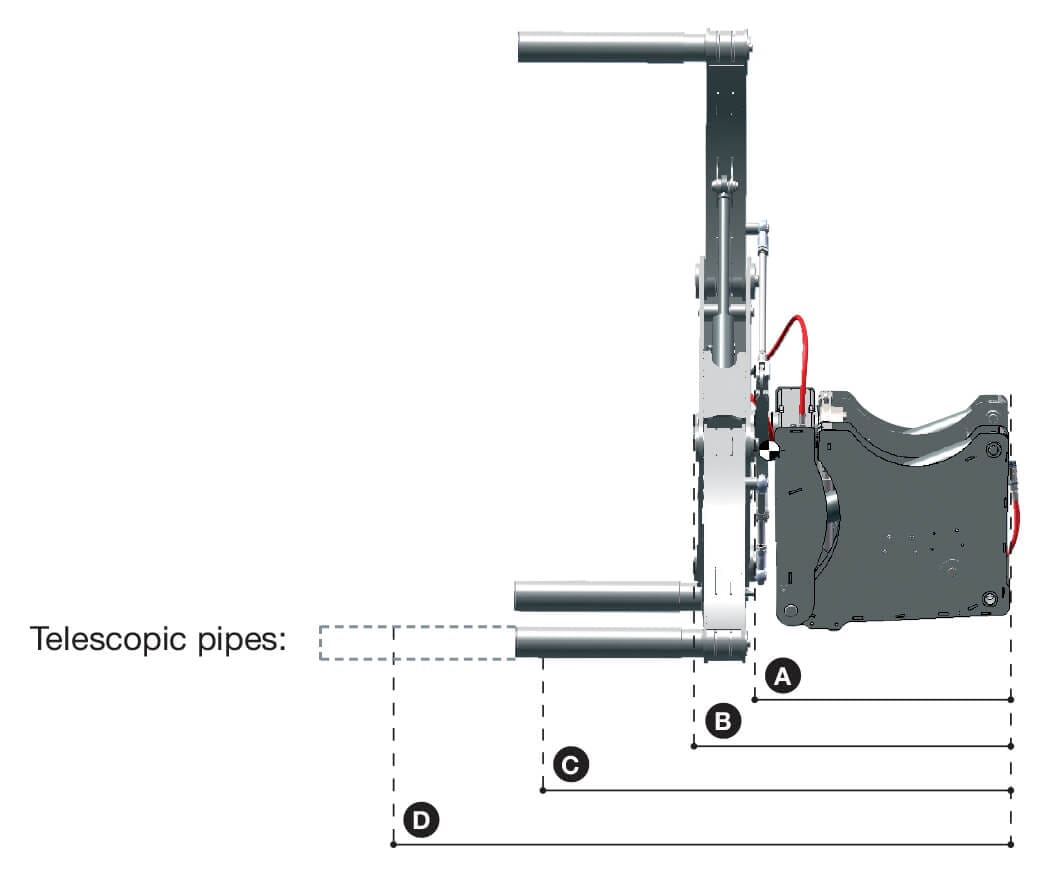

(A) CoG Gripper: 800 mm (31”)
(B) Rear of Load: 1.000 mm ( 39” )
(C) CoG Load1 = 1.550 mm (61”)
(D) CoG Load2 = 2.250 mm (89”)
