EASY GRIPPER WORKSHOP 2T

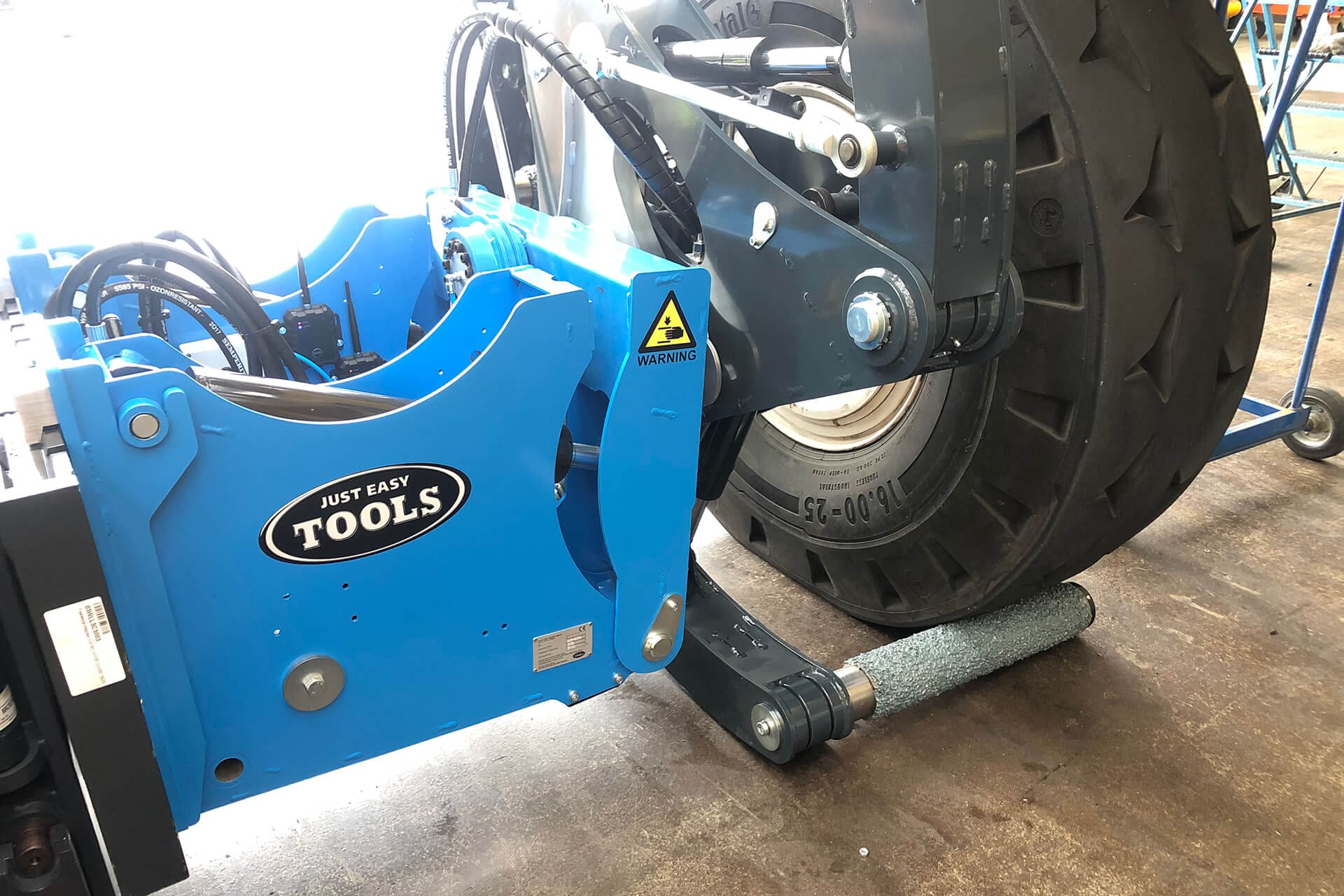

Easy Gripper Workshop 2T

A perfect and flexible solution for safe and efficient tyre handling in tyre workshops and at assembly lines with limited space.

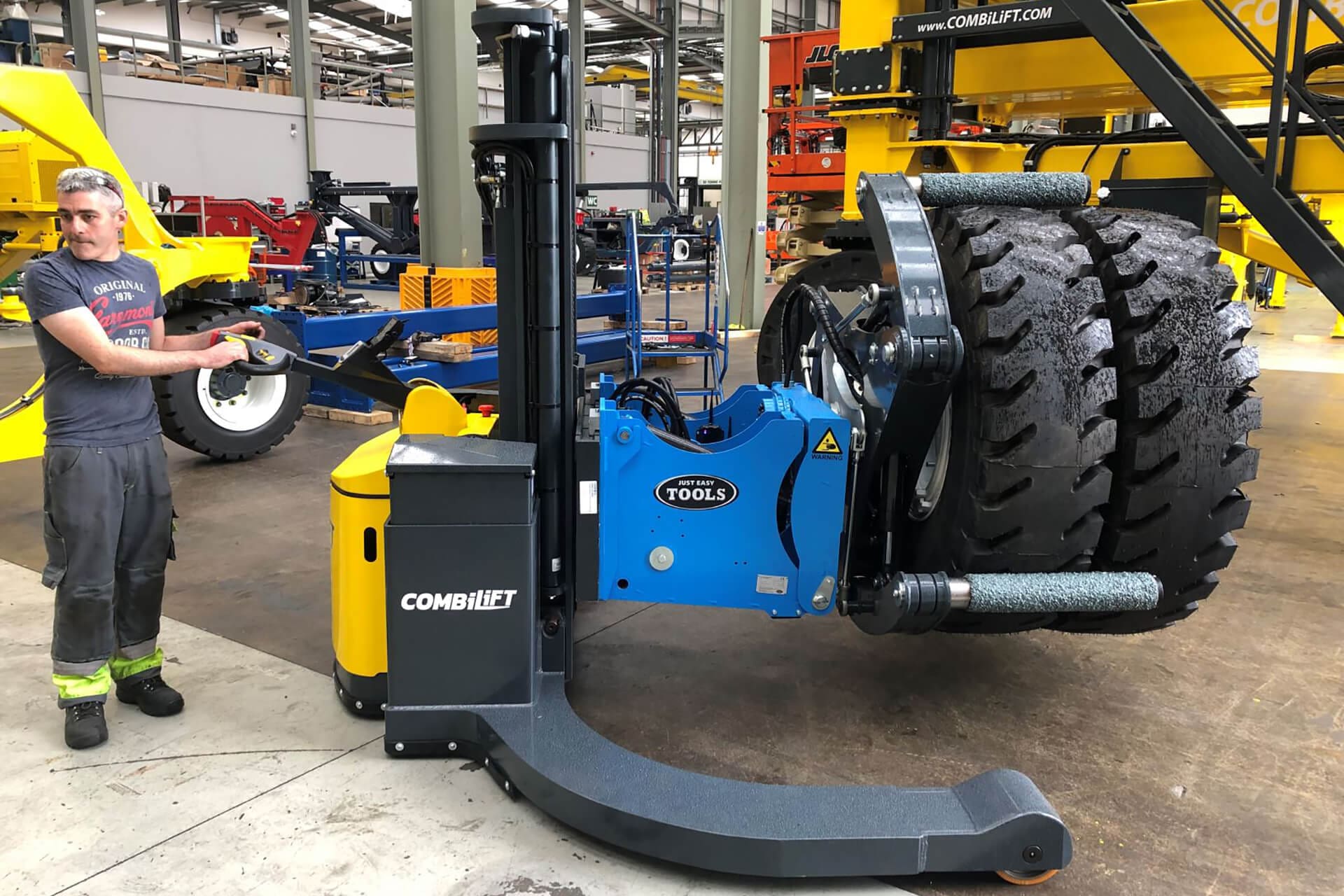

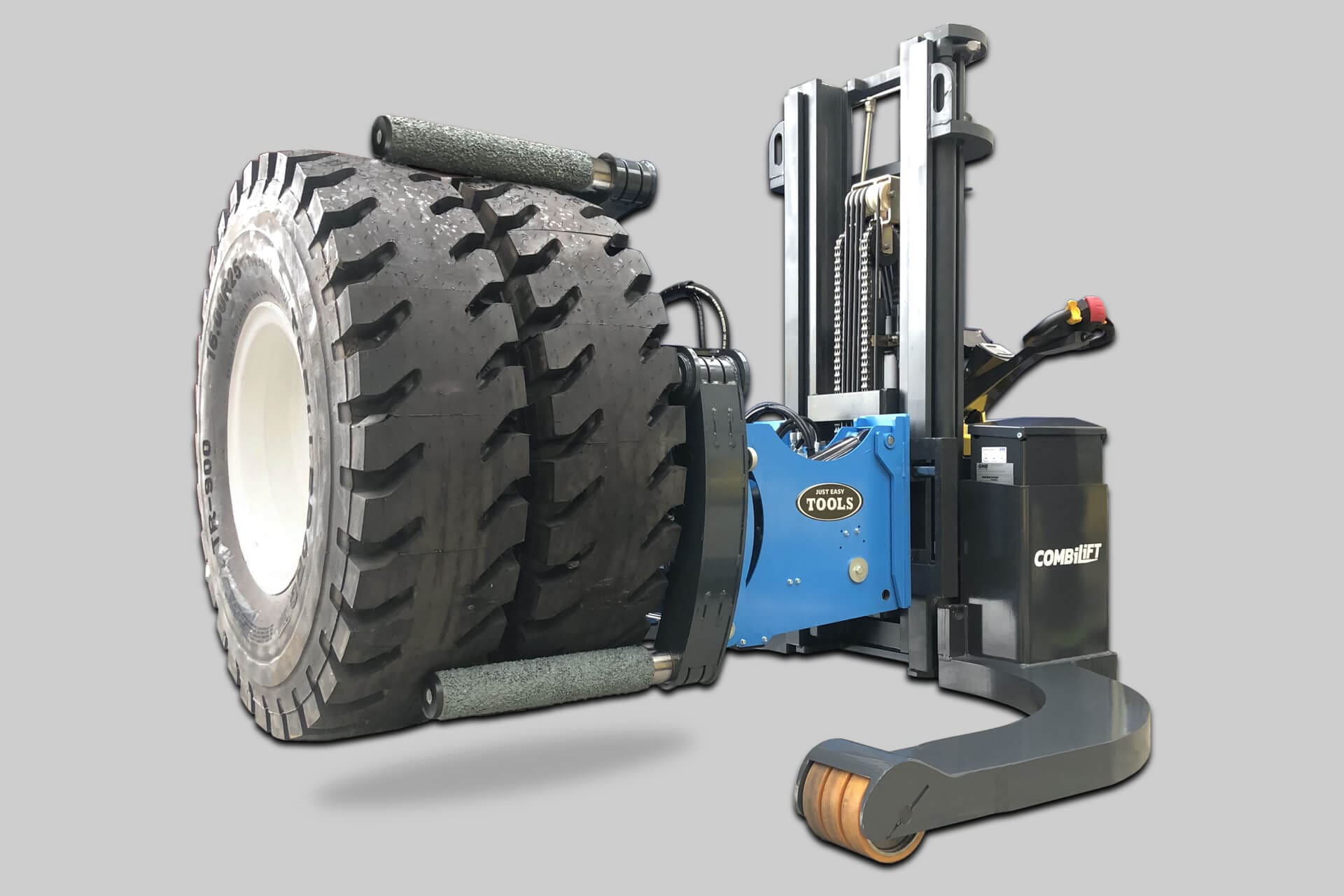

The Easy Gripper Workshop 2T can be delivered for installation on your local electrical stacker or as a “READY TO GO” turnkey solution mounted on e.g. a rebuild Combilift WR3000.

Capability

Grips, lifts, moves, tilts and rotates tyres from Ø850 – 2.400 mm (34 – 94”) and 2.000 kg (4.400 lbs) at a CoG of 550 mm (22”).

Standard features

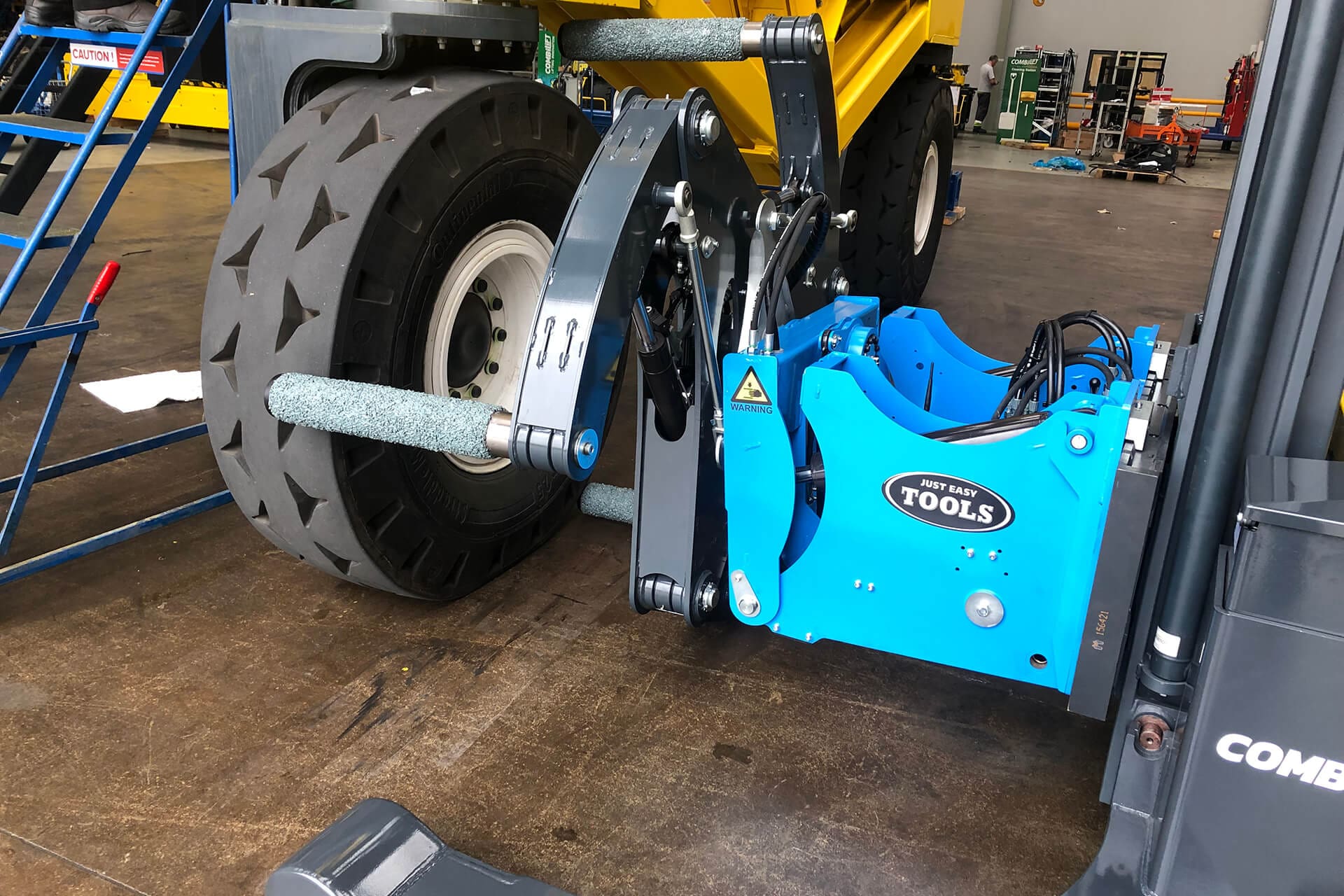

  • Unique and safe 3-point grip
    Avoid accidents.
    Avoid deformation of tyres.
    Avoid damages to tyres, rims and equipment.

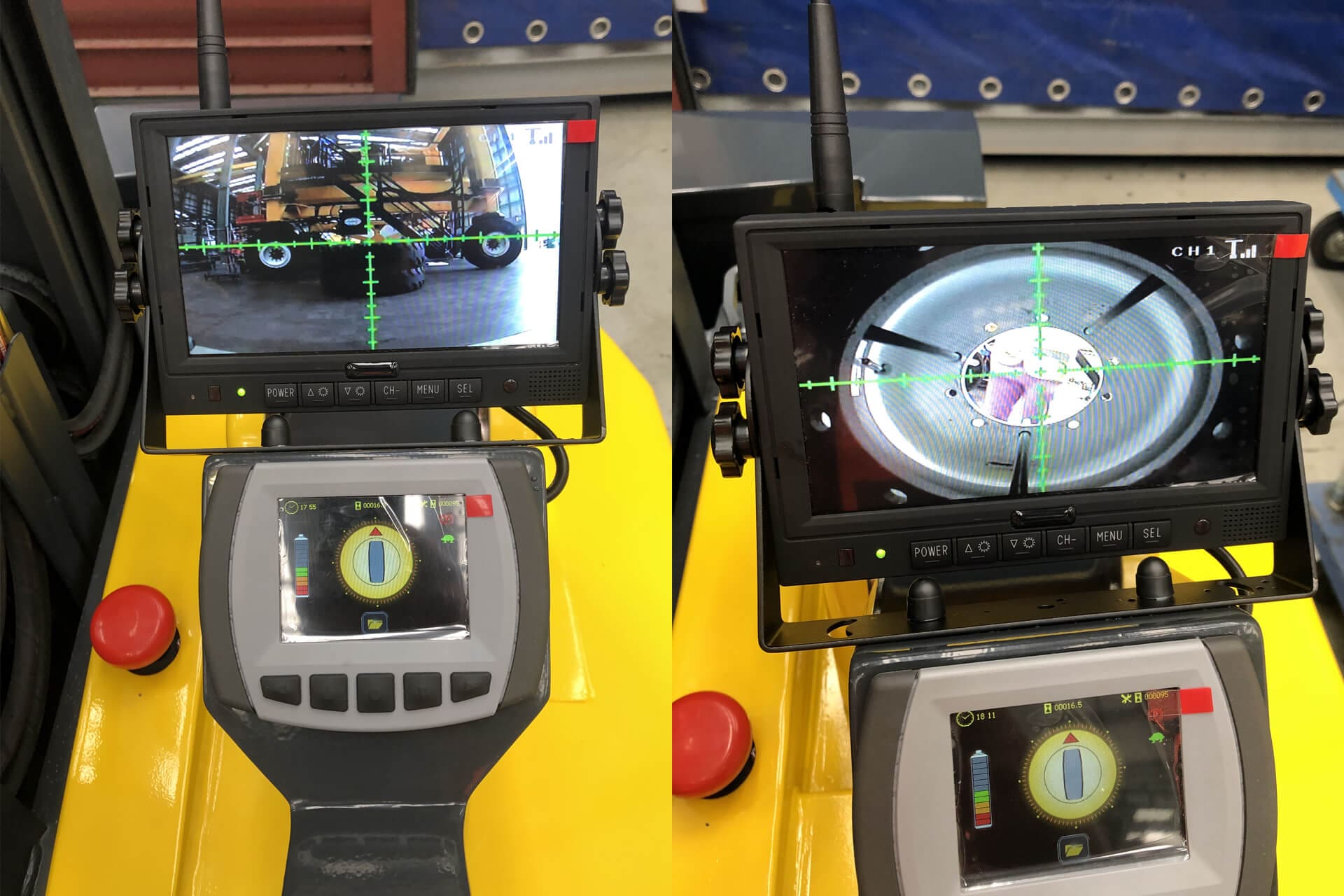

  • Integrated camera system for optimal view
    With automatic IR function in insufficient light conditions.
  • Integrated Control System build in tiller
  • Precise rotation +/-25°

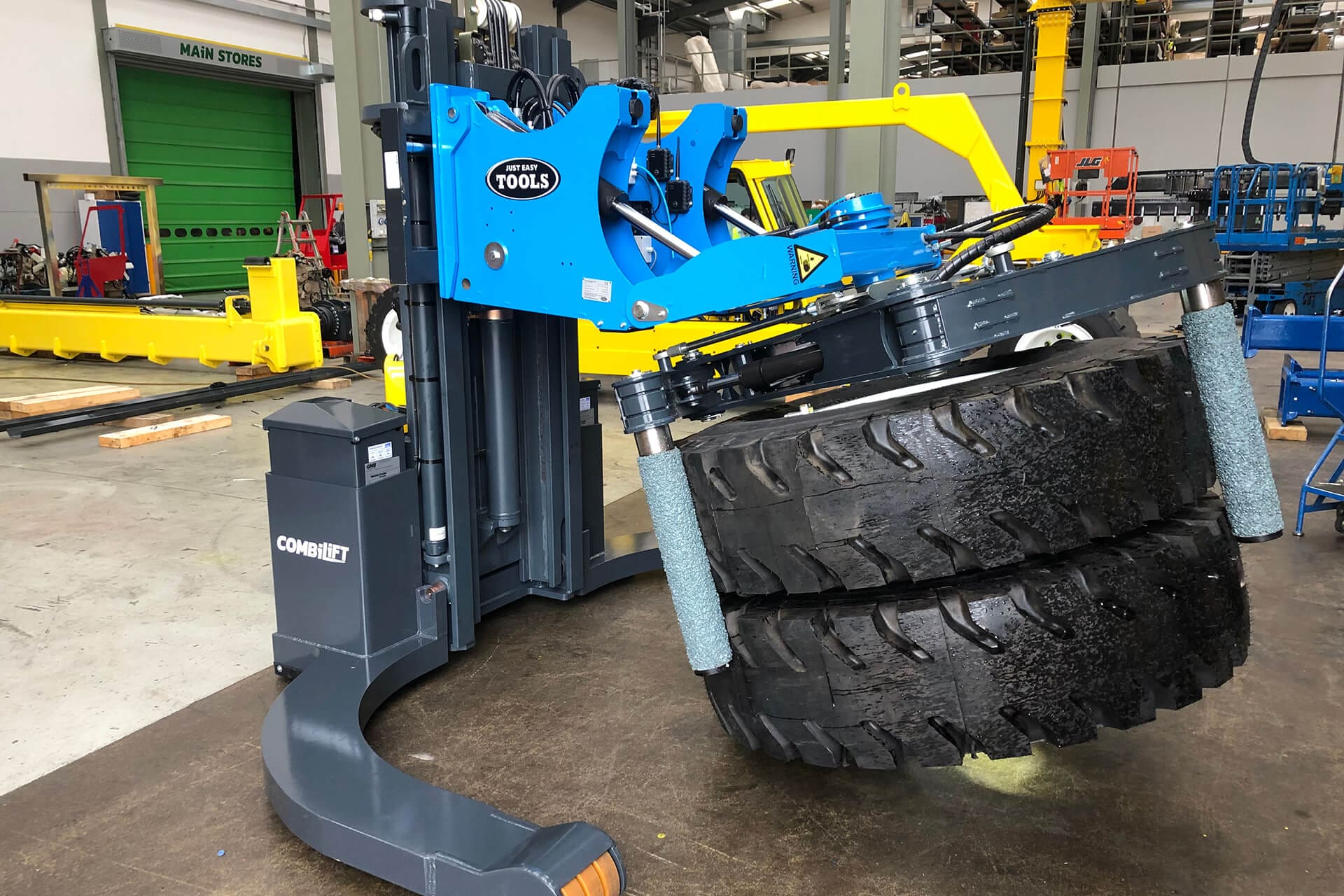

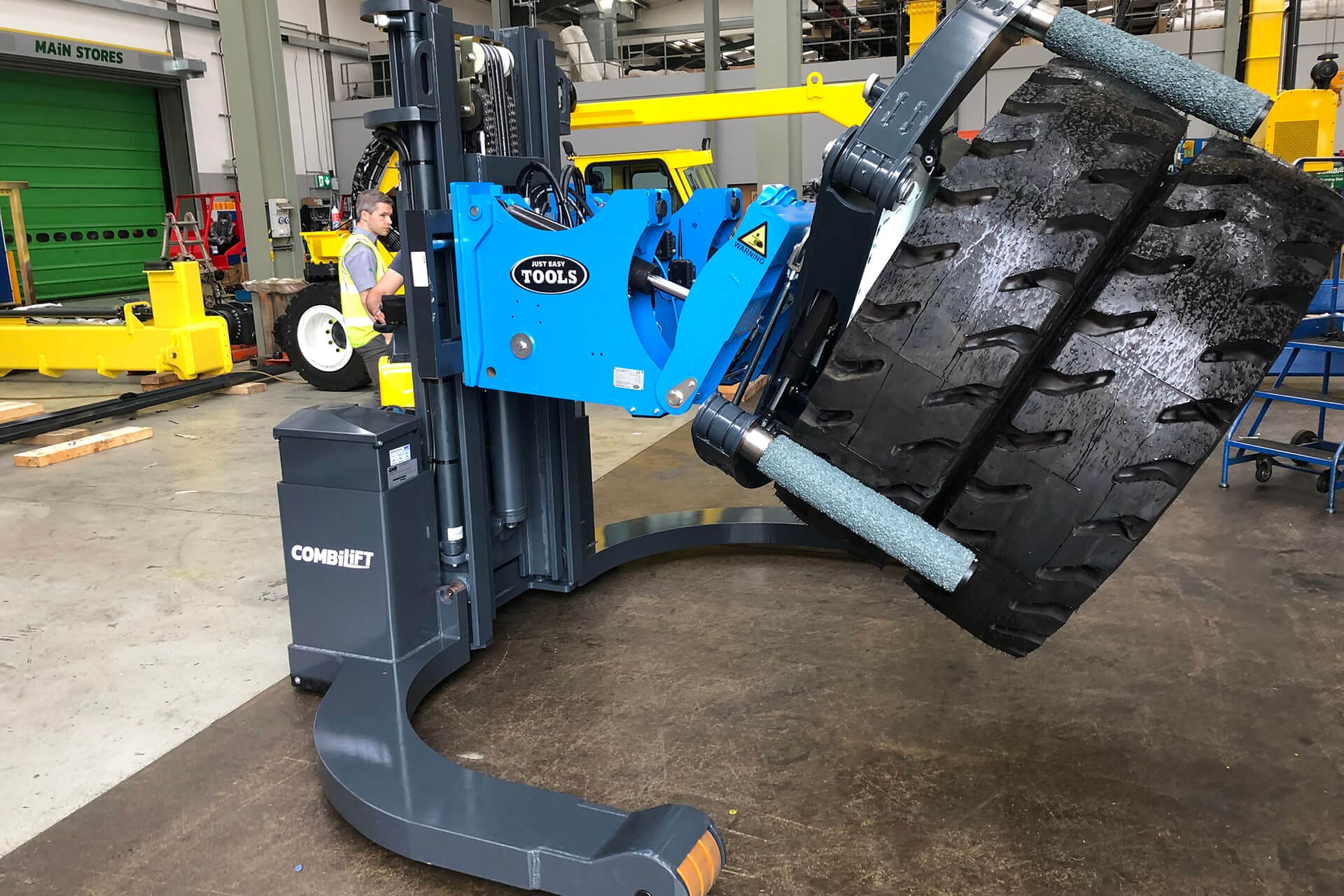

  • Tilt function 90°, horizontal to vertical
  • Side Shift +/- 80mm*
  • Slow drive mode*
    Controlled and accurate movements improve safety.
  • Turning radius 2.000 mm (79”)*
    *Depending on carrier.

Optional accessories

  • Easy shift of gripping pipes for various purposes

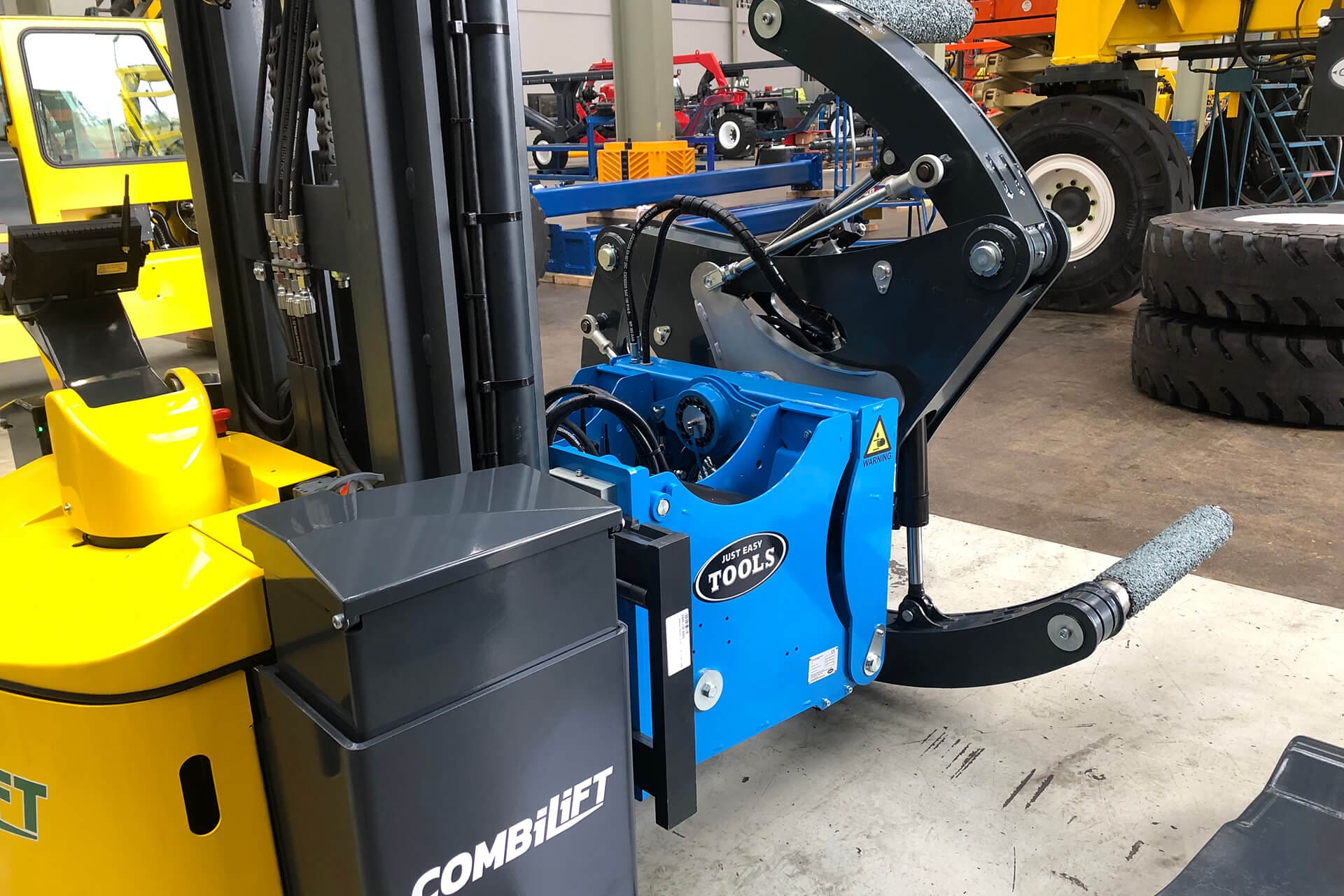

    Flat top arm for limited tyre clearance.

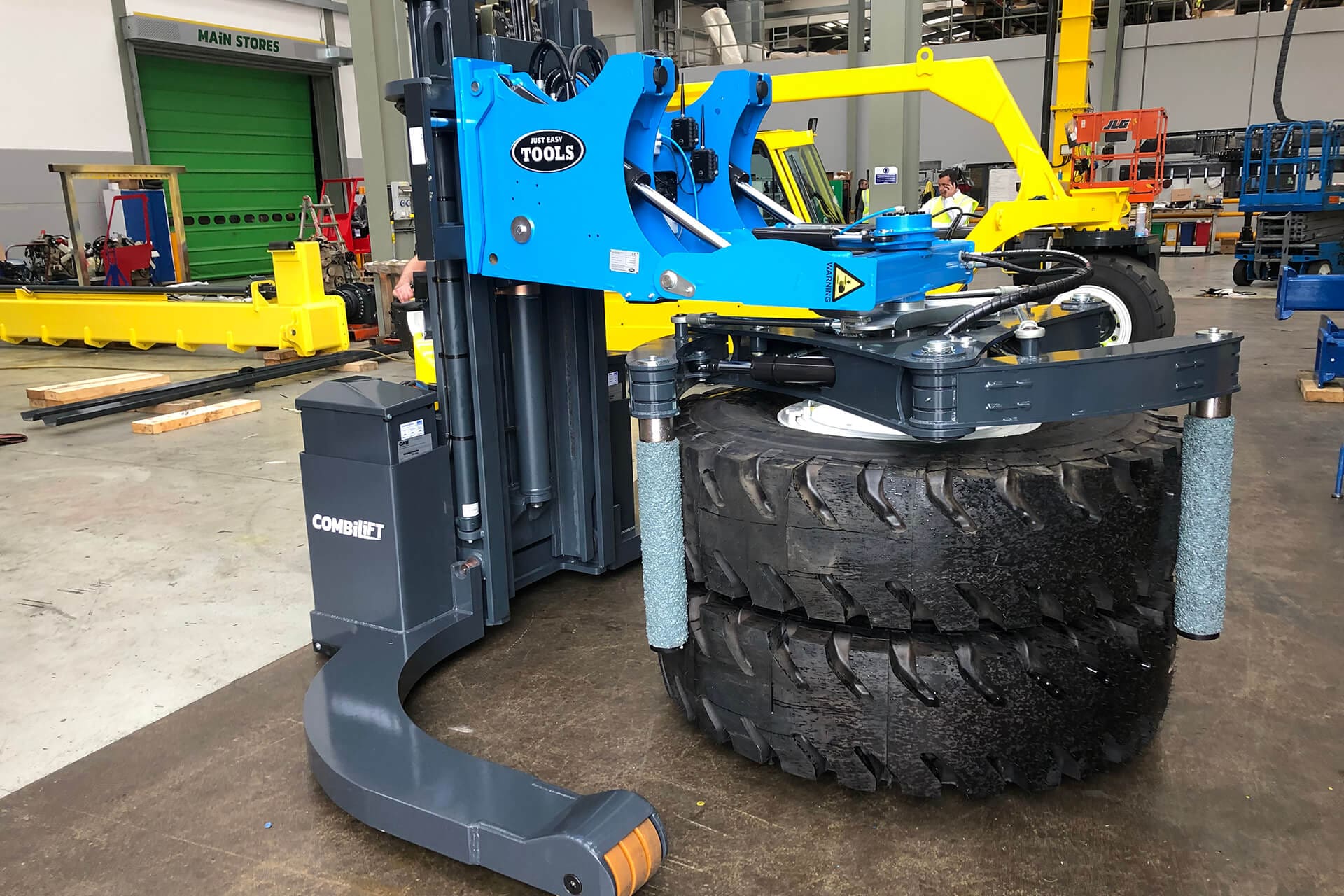

    Telescopic pipes for long reach, to provide room for the tyre fitters and for dual tyre handling.
  • LED working light
  • Second camera for view of bolt diameter
  • Customization on request
Flyer

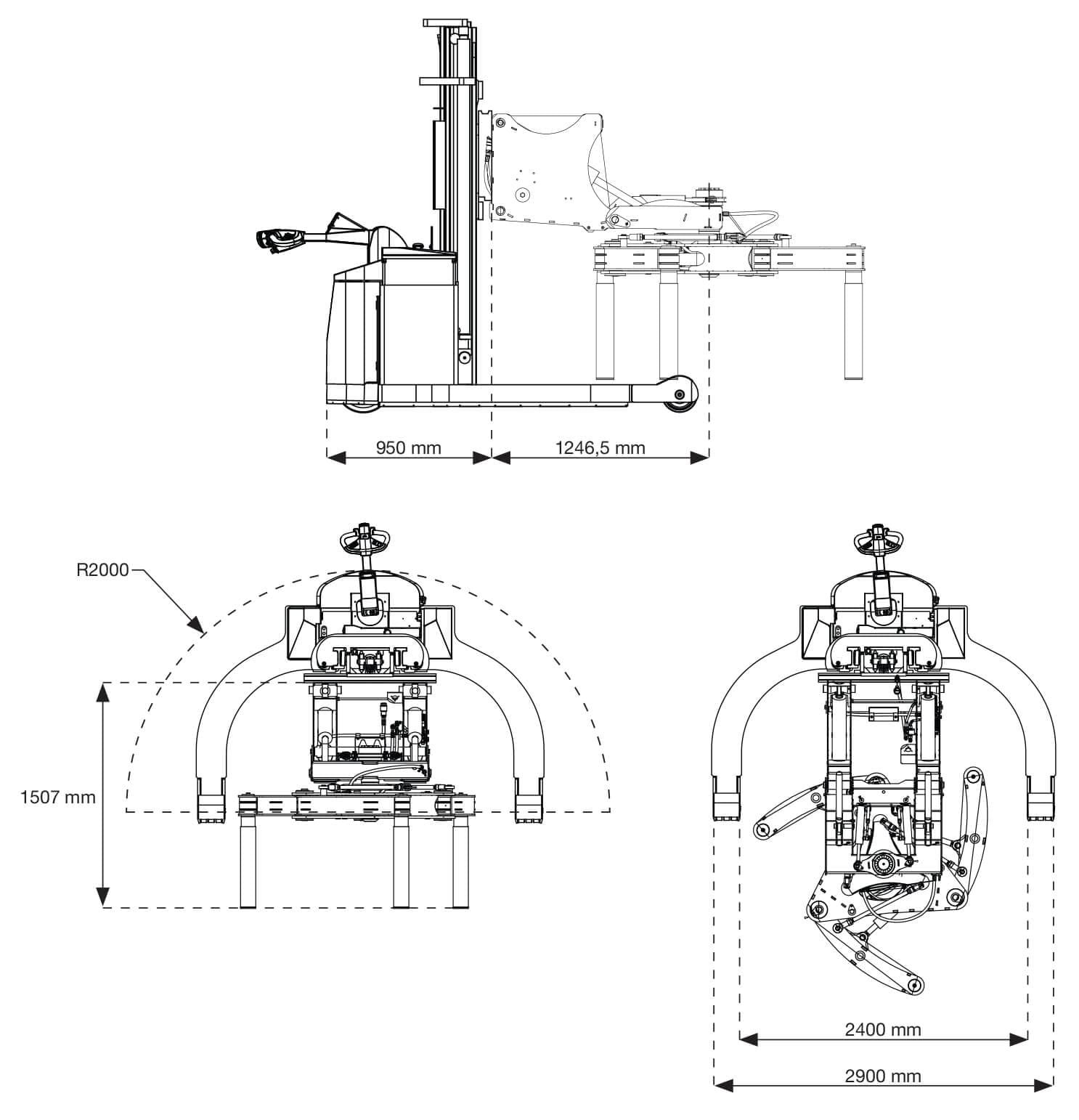

Technical specifications

Technical Data

  • Lifting capacity: 2.000 kg (4.400 lbs)
  • Tyre diameter: 850 – 2.400 mm (34 – 94”)
  • Width of Stacker: 2.900 mm (114”)
  • Min. turning radius: 2000 mm (79″)
  • Tilt from vert. position: 90°
  • Rotation: +/-25°
  • Side Shift: +/- 80 mm
