EASY GRIPPER 2160 COMPACT

Easy Gripper

The Easy Gripper product range is designed to help tyre professionals in a multitude of conditions and situations. Implementing The Easy Gripper makes tyre handling faster and safer, while preventing damage to tyres, rims and equipment.

Capability

With a gripping range of Ø700 – 2.160 mm (28 – 85”) and a lifting capacity of 1 ton (2.200 lbs) at a CoG of 500 mm (20”), the Easy Gripper 2160 Compact is developed to handle AGRO and light OTR tyres. On request the gripping diameter can be extended to Ø2.400 mm (94”) to handle even the biggest AGRO tyres.

Use on electrical stackers, reach trucks, front loaders, telehandlers and truck cranes

On electrical stackers and reach trucks and when working space is limited, see Easy Gripper Workshop.

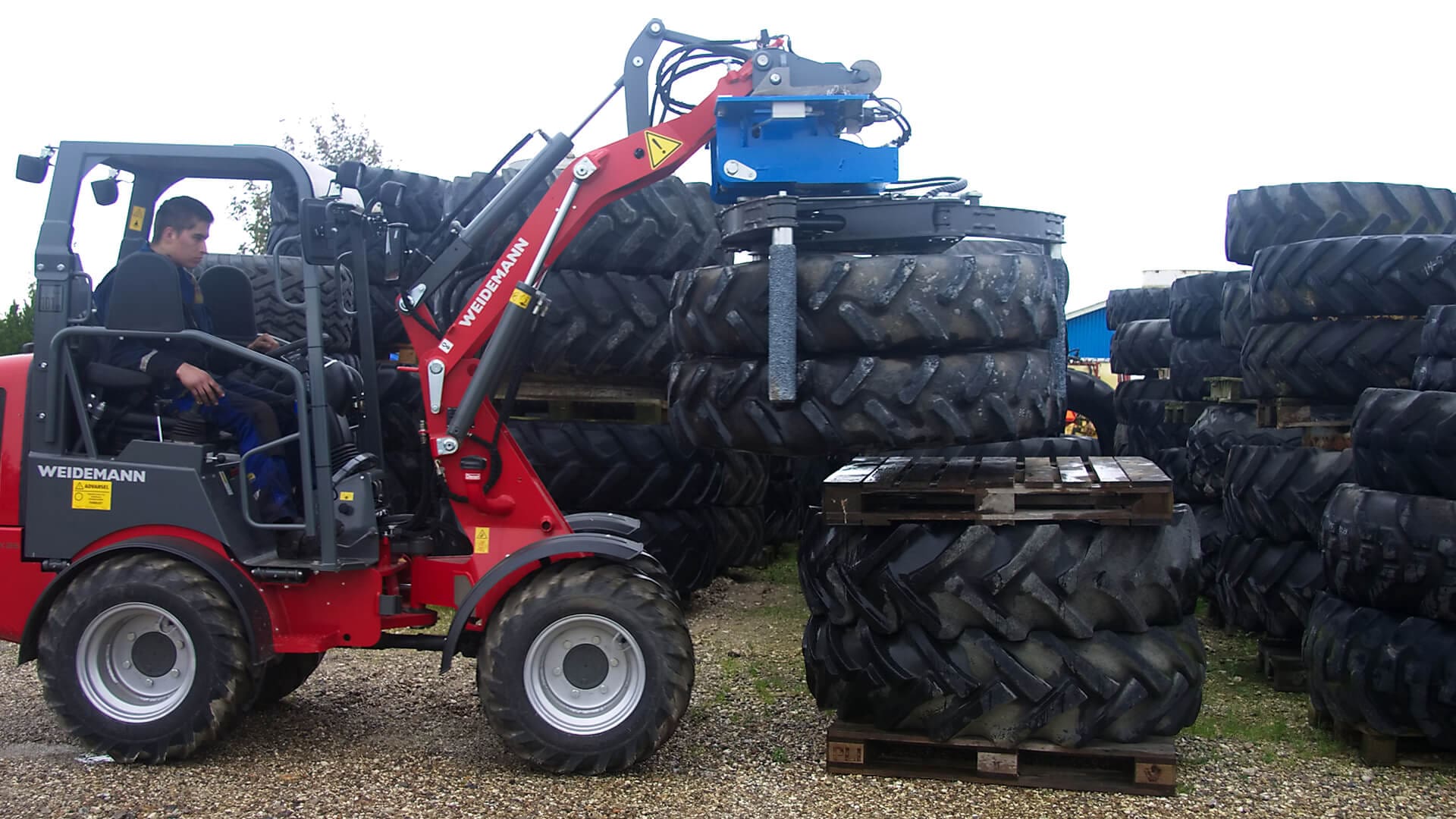

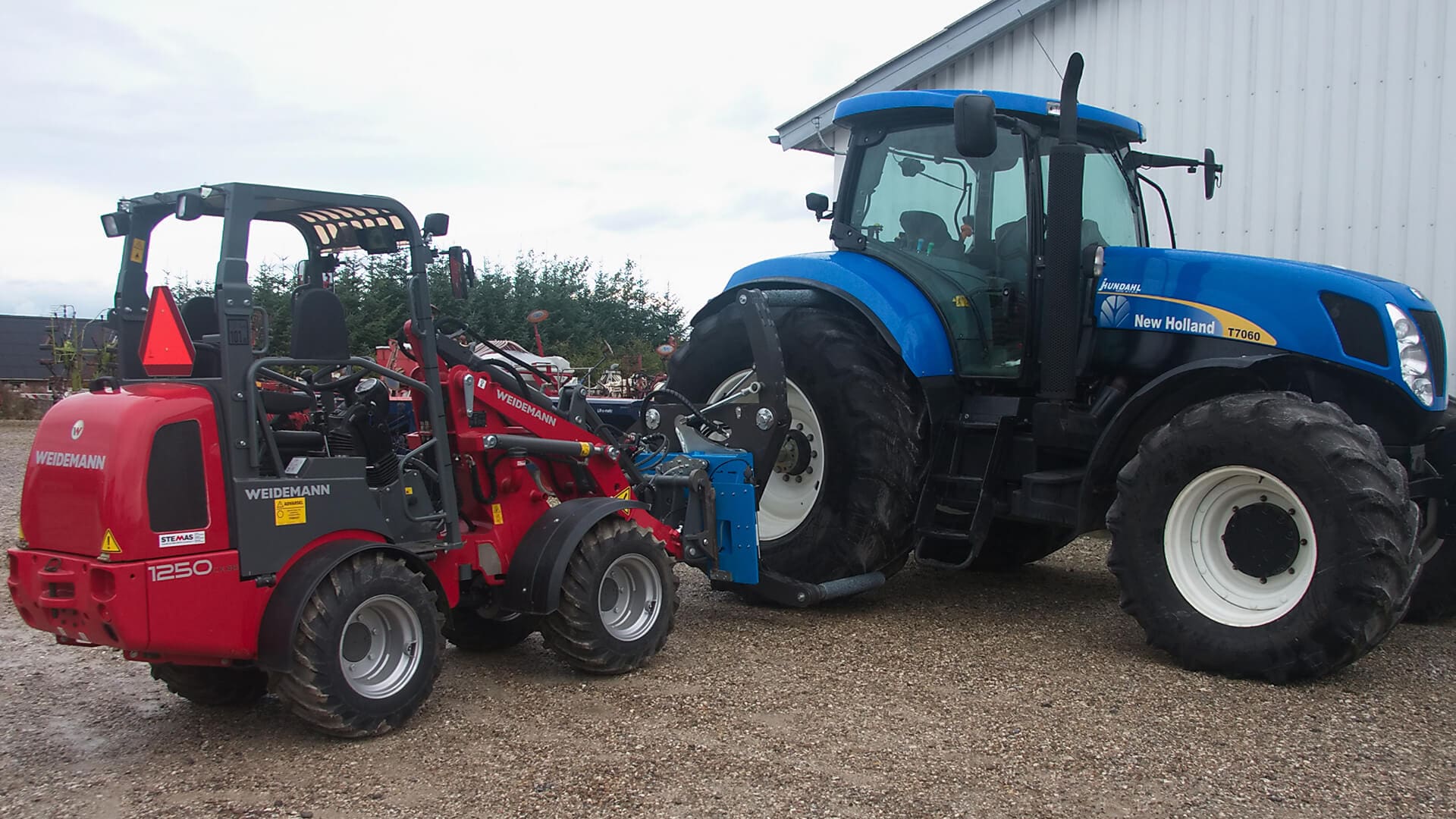

The Easy Gripper 2160 Compact is a good choice on front loaders and telehandlers, if the carrier can provide sufficient tilt.

By use of our Crane Module the Easy Gripper 2160 Compact also fit with almost any truck crane system.

Standard features

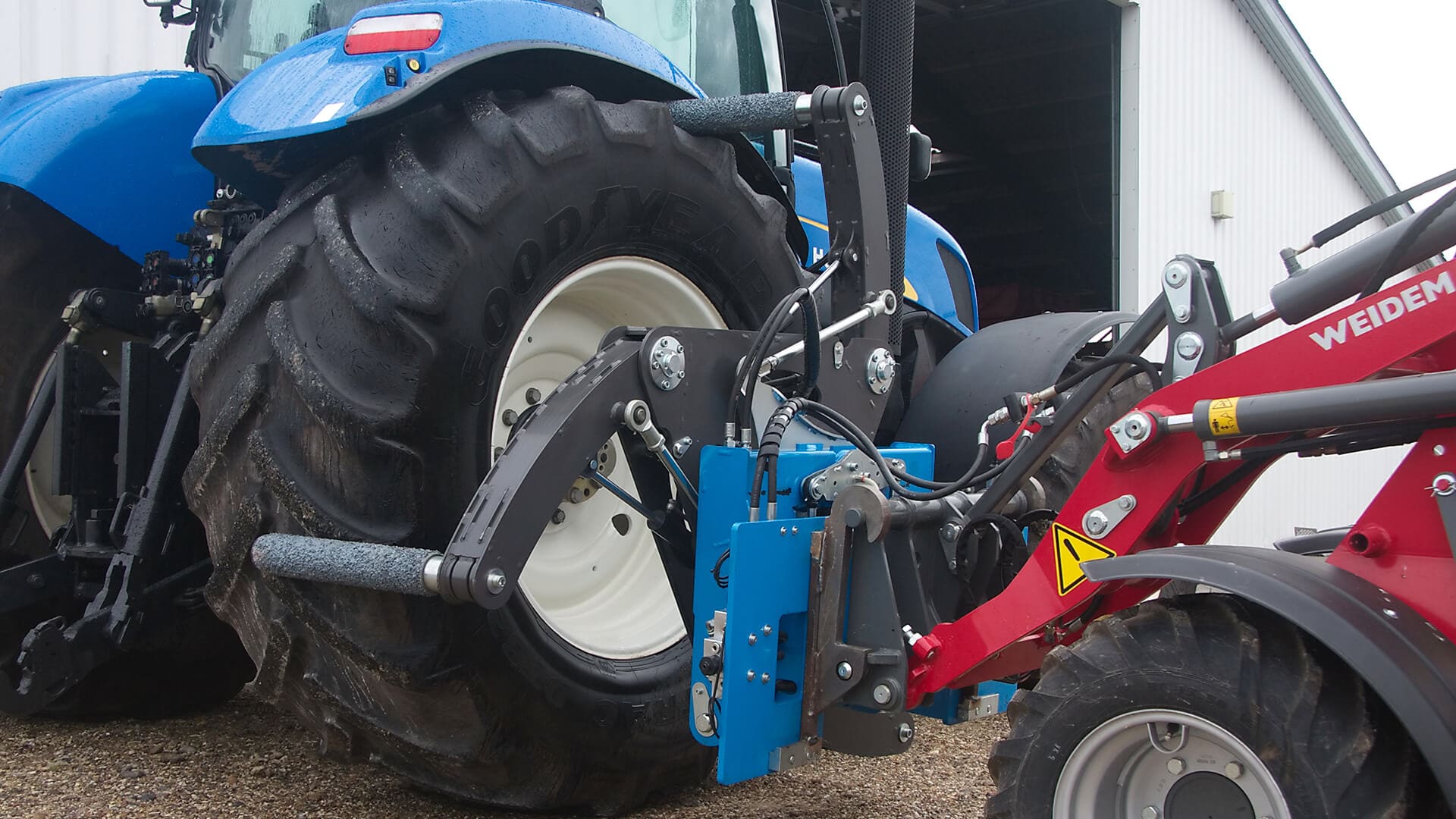

  • Unique and safe 3-point grip
    Avoid accidents.
    Avoid deformation of tyres.
    Avoid damages to tyres, rims and equipment.

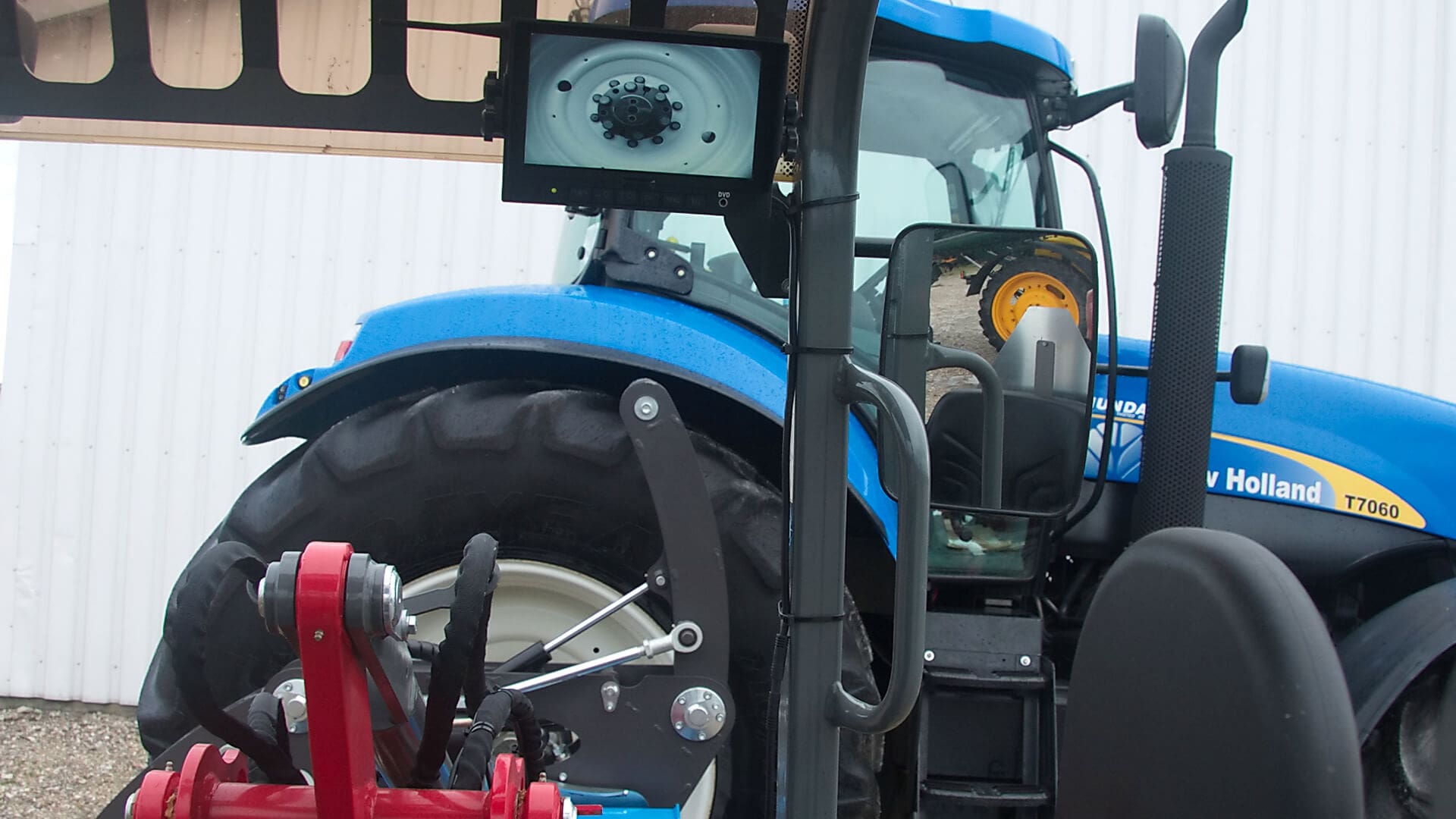

  • Integrated camera system for optimal view
    With automatic IR function in insufficient light conditions.
  • Precise rotation +/-25°
  • Horizontal to vertical tilt depending on carrier
  • Compact attachment system
    Can be customized depending on carrier.

Optional accessories

  • Easy shift of gripping pipes for various purposes
    Flat top arm for limited tyre clearance.
    Telescopic pipes for long reach, to provide room for the tyre fitters and for dual tyre handling.
  • Tools for safe handling of tyre rings
    To help tyre fitters with the hard and dangerous work. Can easily be attached at the end of the gripping pipes. Can push the tyre and can hold and place the rings.
  • Customization on request
Flyer

Technical specifications

Technical Data

  • Weight: 470 kg (1.034 lbs)
  • Lifting capacity: 1.000 kg (2.200 lbs)
  • Tyre diameter: 700 – 2.160 mm (28 – 85”)
  • Standard pipes: Ø89 x 600 mm (3,5 x 24”)
  • Telescopic pipes: Ø100 x 600 -> 875 mm (3,9 x 24 -> 34”)

Requirements to carrier

  • Attachment: ISO/FEM/ITA Class 2 or 3 / Loader specific
  • Lifting capacity: Individual calculation
  • Electrical supply: 12/24 V / min 10A
  • Hydraulic: 1 double acting hydraulic valve
  • Pressure min-max: 150 – 250 bar (2.175 – 3.626 psi)
  • Return pressure: max. 10 bar (145 psi)
  • Flow: max. 50 l/min. (13 gal/min.)

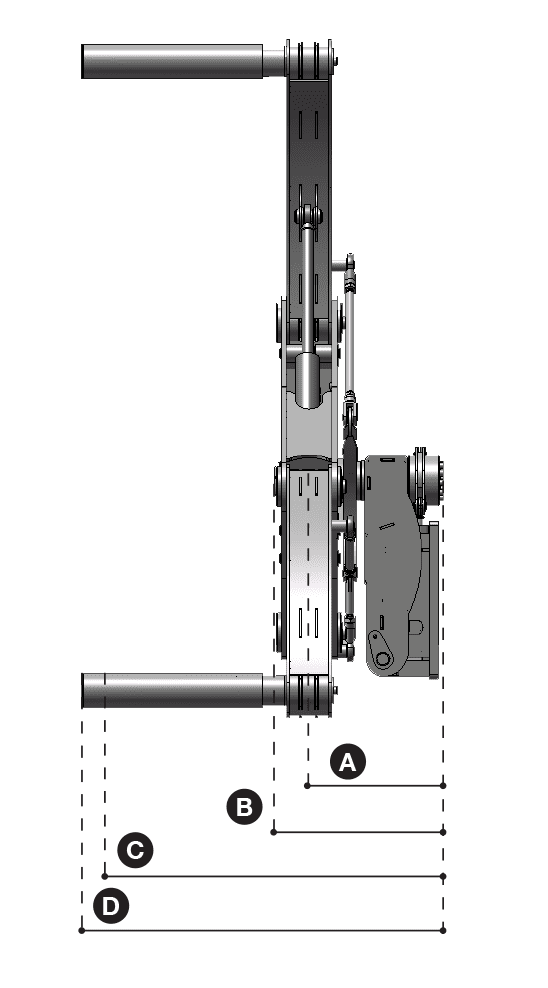

Explanatory description

(A) CoG Gripper: 370 mm (15”)
(B) Rear of Load: 425 mm (17”)
(C) CoG Load: 925 mm (36”)
(D) Length 1.025mm (40”)
